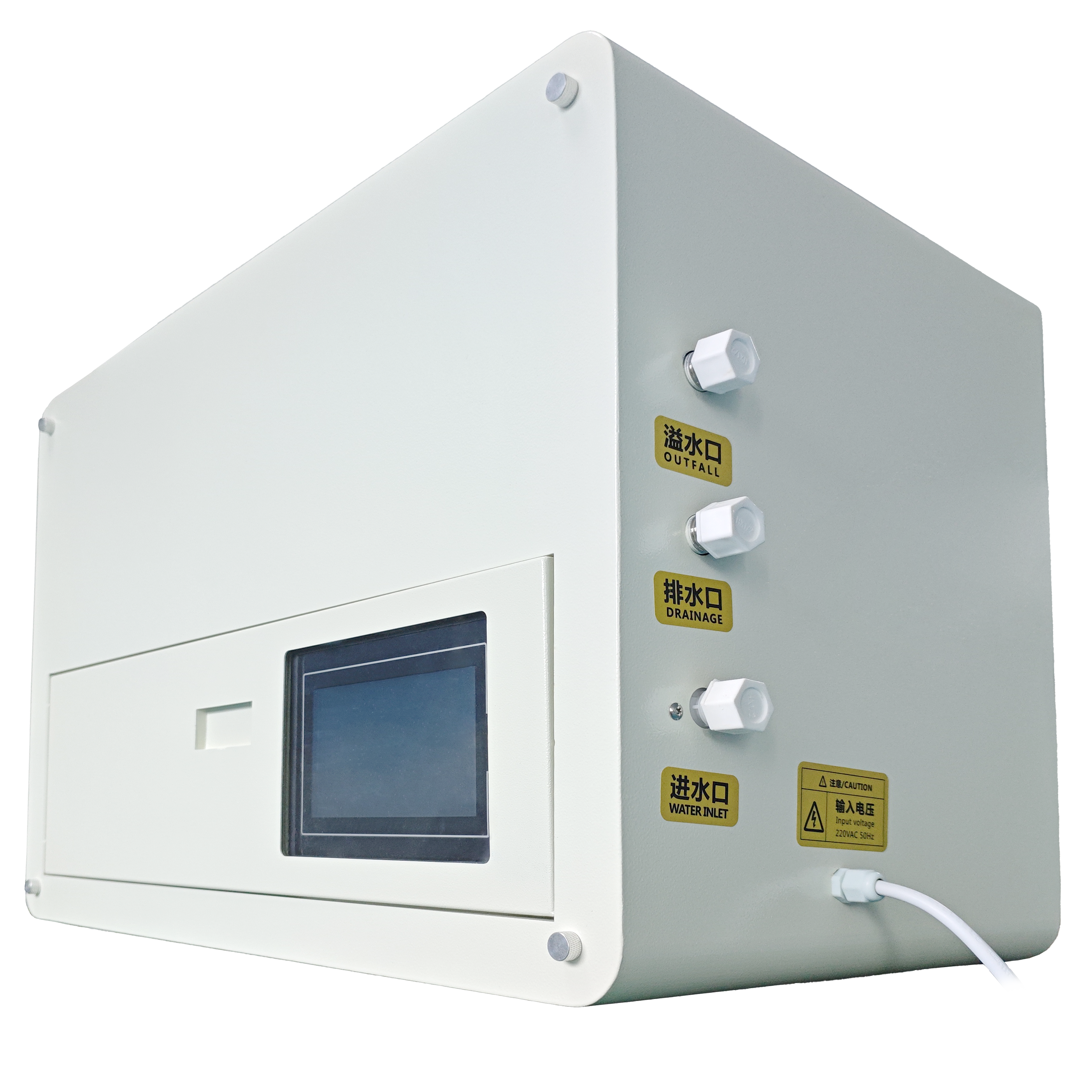

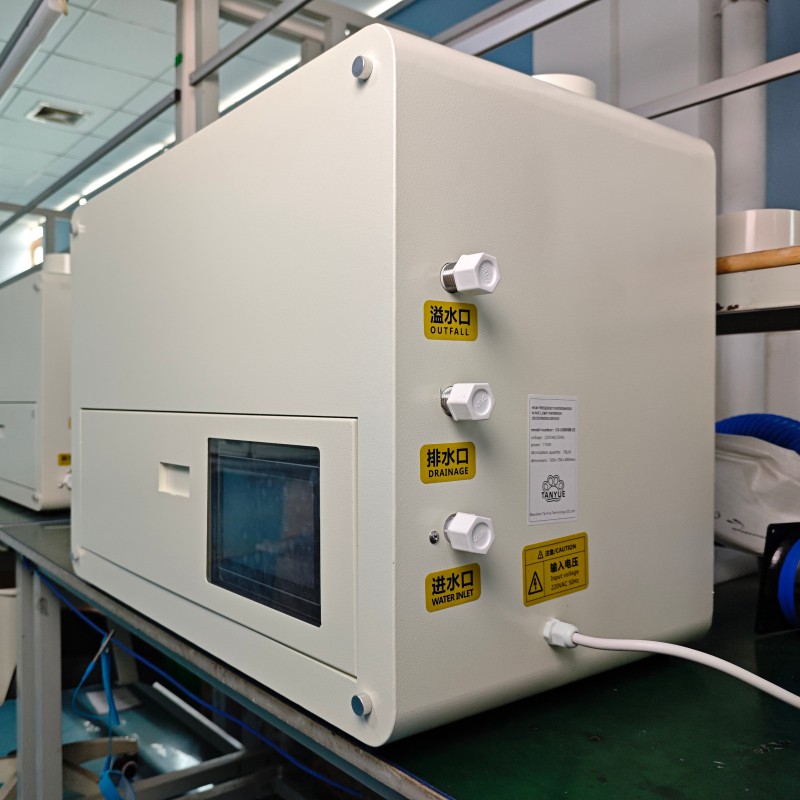

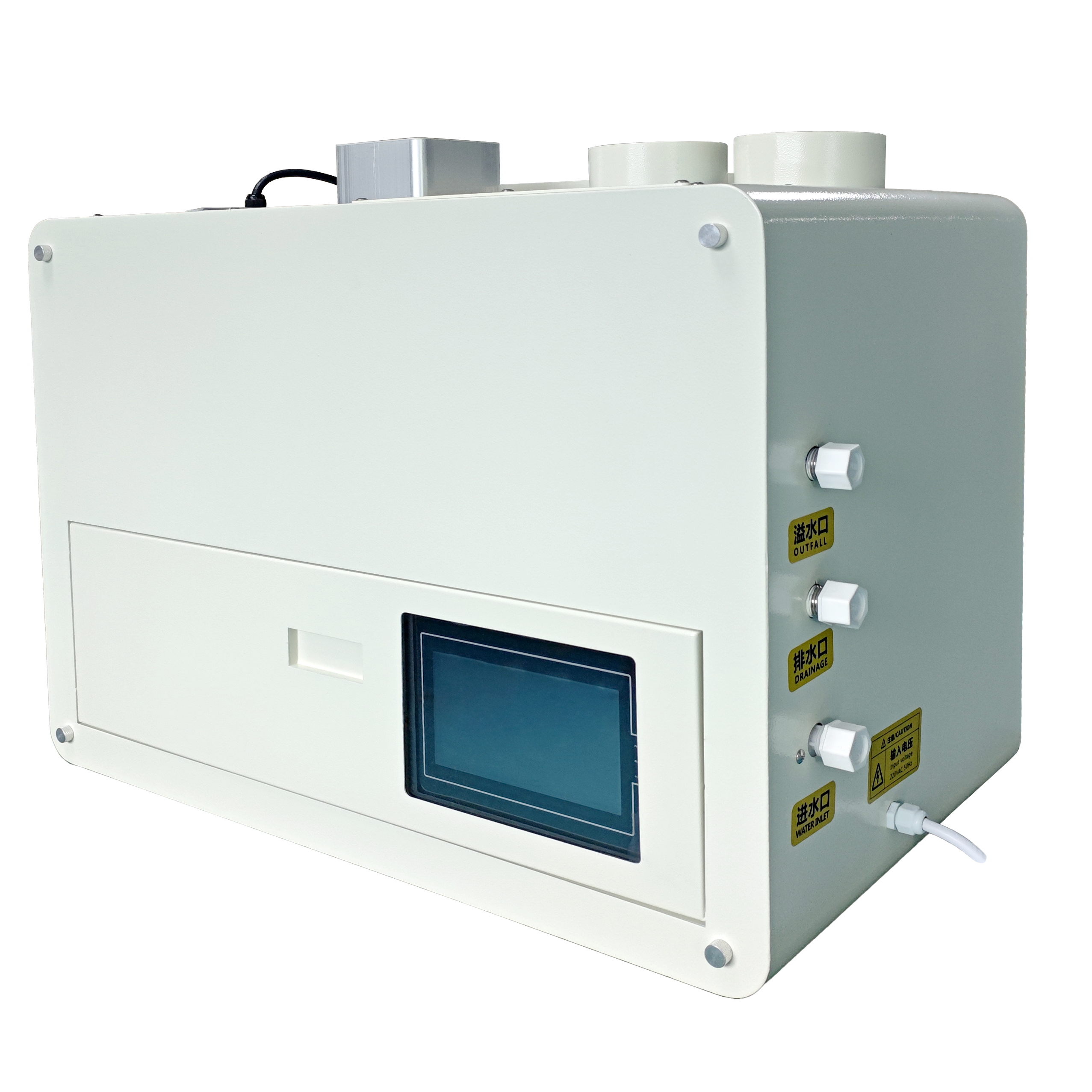

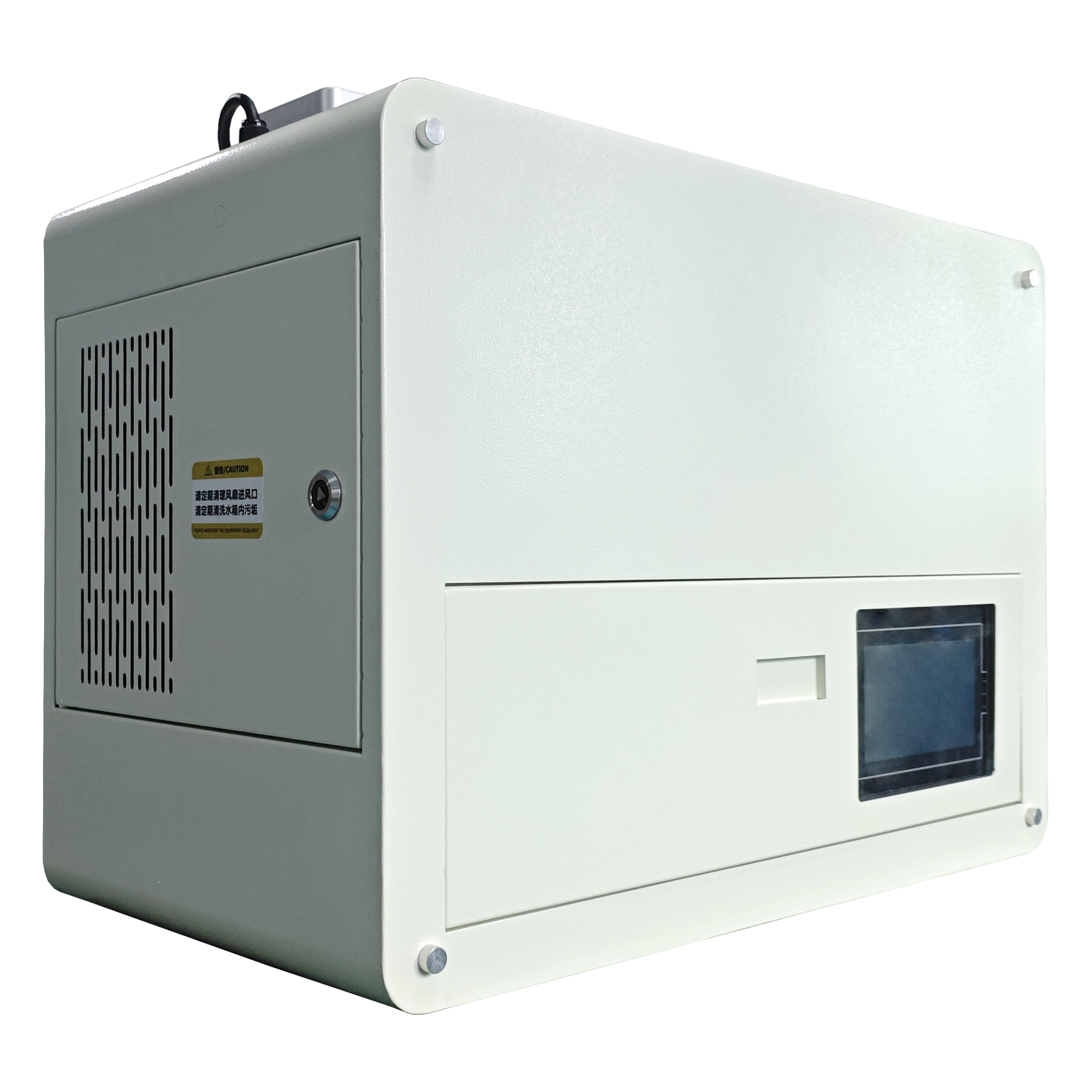

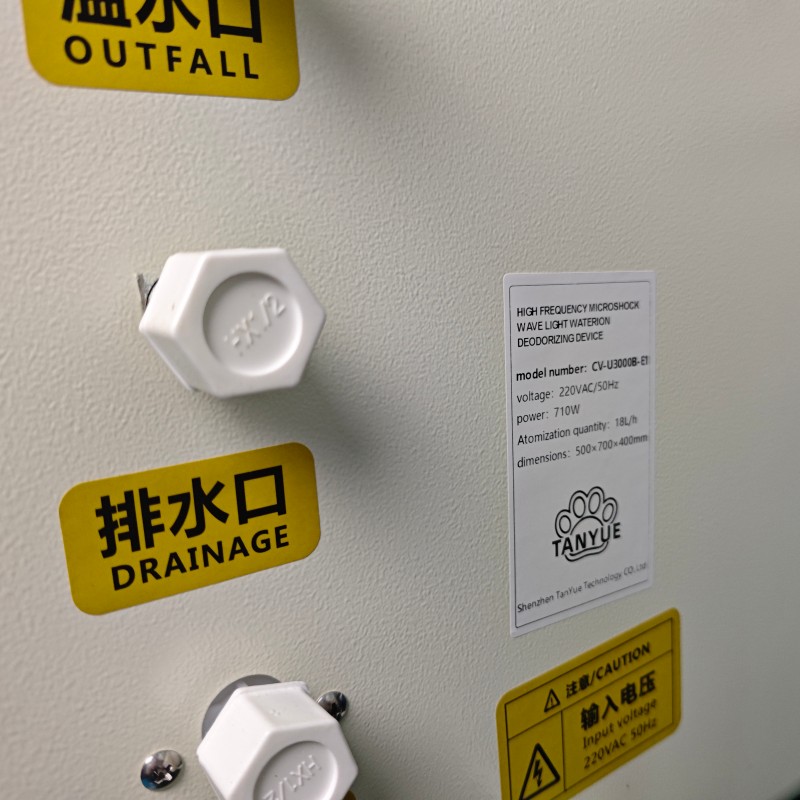

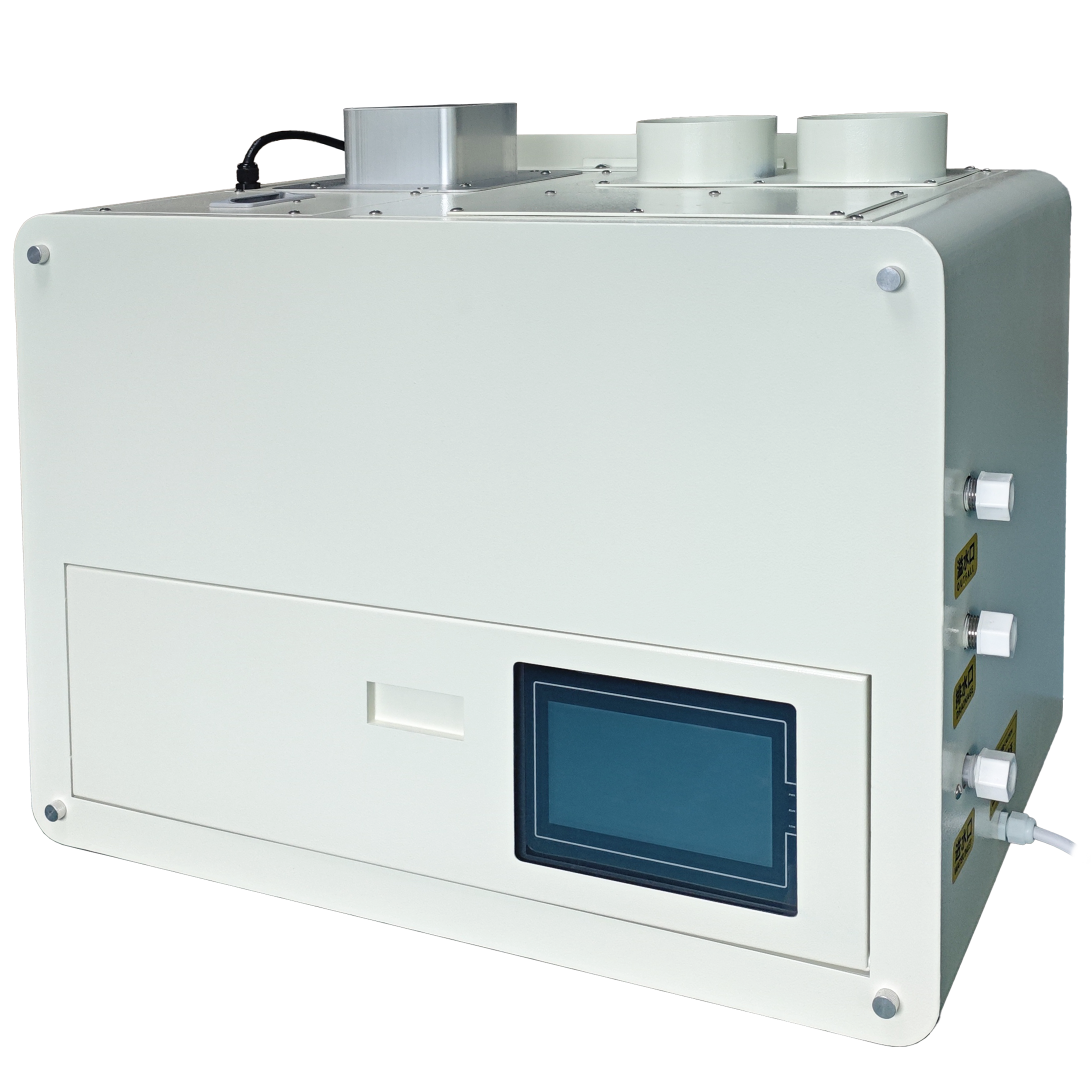

CV-U3000B-E1 Proactive Odor Control System
Intelligent deodorizing device integrating atomization deodorizing system and ion deodorizing system. Fully automatic operation, no need for personnel on duty.
Deodorization adopts the dual mode of high-frequency micro-shock atomization technology combined with ultra-high-order photo-water ion deodorization technology.
Ultra-high-order photo-water ion deodorization system adopts nano-ceramic catalyst technology and low-frequency electrodeless broad-spectrum ultraviolet driving technology. Wide voltage operation, the voltage can work normally between 185 v and 255 v. The low-frequency working frequency is 230Hz, the installation has no stroboscopic effect, the starting temperature is low, and the adaptive temperature range is 25 degrees below zero, so it can start and work normally. The service life is over 30,000 hours.
Contact Us

Product Description



model

Proactive Odor Control System

CV-U3000B-E1 wall-mounted

CV-U3000B-E1 cabinet type

Parameters and specifications

Fog production

≥18L/h

≥18L/h (expandable to 36L/h)

Particle diameter

<5μm

<5μm

Atomization module cycle

≥5000Hr

≥5000Hr

Pharmaceutical ratio value

1:10-1:999

1:10-1:999

control

Can set timing and intermittent work

Can set timing and intermittent work

4G network remote management function

Optional

Optional

Environmental gas monitoring function

Optional

Optional

Automatic alarm function for lack of deodorizing liquid

have

have

Primary and high efficiency filters

-

have

Ultra-high-order photo-water ion module

100W

100W

Power supply voltage

220VAC/50Hz

220VAC/50Hz

power

710W

780W

Fresh air volume

-

600m³/h

Mist outlet type

Direct injection/pipeline

pipeline

Net weight of single machine

36kg

85kg

Dimensions

500 * 700 * 400mm

1500 * 700 * 400mm

Material

304 stainless steel paint

304 stainless steel paint

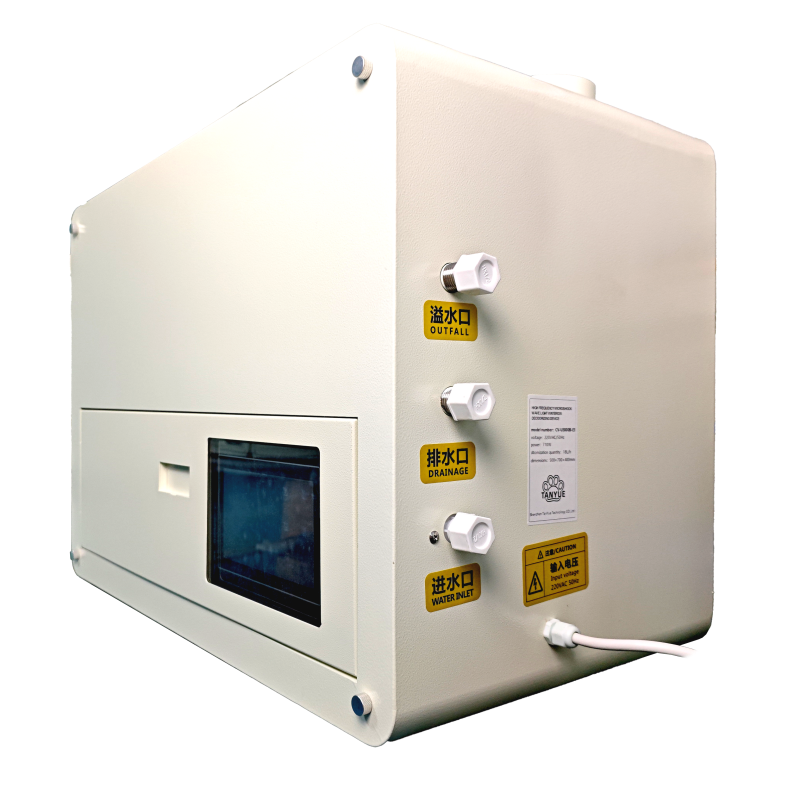

Product Display

Introduction

factory
